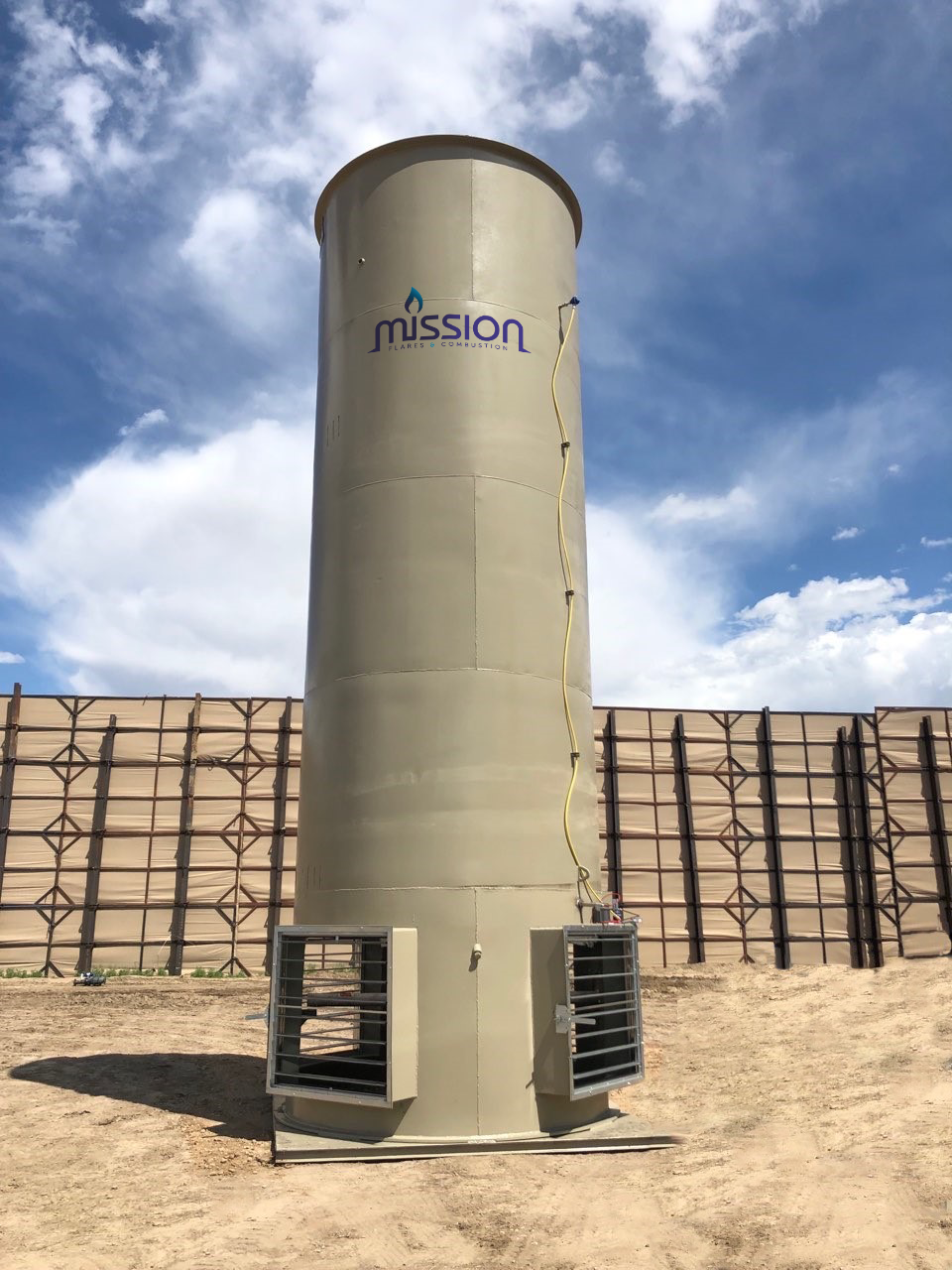

Mission enclosed combustors are designed and manufactured to be efficient, safe and reliable.

Our enclosed combustors are designed to offer smokeless combustion and greater than 98 percent destruction and removal efficiency. Each unit meets 40 CFR 60.18 design requirements and is Quad O compliant. Plus, with Mission’s unbeatable service, our enclosed combustors can’t be beat.

Features and Benefits

  • Low Pressure
  • Smokeless Combustion
  • Greater than 98% DRE Efficiency
  • Meets 40 CFR 60.18 Design Requirements
  • Designed to meet Quad O Requirements
  • Flow Rates from 20 MSCFD to 1500 MSCFD
  • Internal Ceramic Fiber Insulated
  • Continuous Pilot
  • Low Pressure Safety Shutdown
  • High Temperature Safety Shutdown
  • Flame Arrestor

Available Options

  • Solar Option Available for Some Units
  • Bird Screens
  • Wind Guards
  • Stack Extensions
  • Knockout Drum

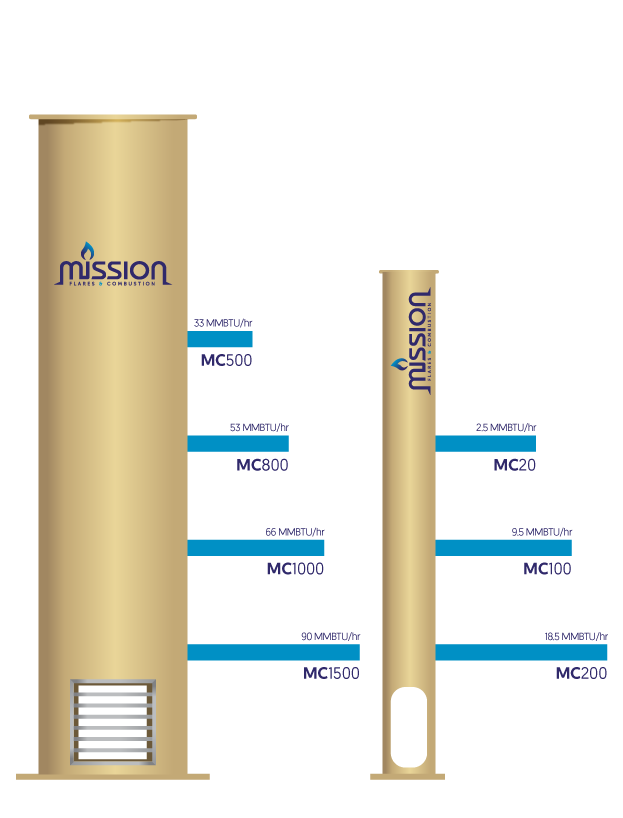

Sizing

All units are sized based on a Gas with a heating value of 1600 BTU/SCF.

Combustors range in size from 20,000 to 1.5 million MSCFD.

Custom Units Available
